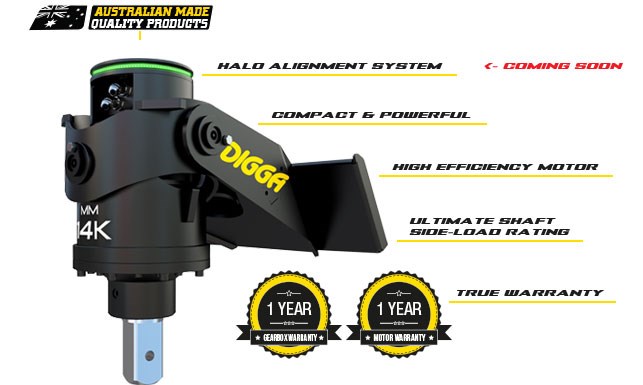

| Specifications | MM-14K |
|---|---|
| Max Torque @ 205 Bar | 14,206 Nm |
| Motor | Char-Lynn Bell |
| Pressure Valve Fitted | N / A |
| Energy Control Valve | N / A |
| Max Pressure | Do not exceed 205 bar @ 70 lpm |
| Max Flow | Do not exceed 70 lpm @ 205 bar |
| Max Continuous Power | Do not exceed 25Kw (33hp) |
| Overall Length | 612 mm |
| Diameter | 289 mm |
| Weight (no linkage / hitch) | 62 kg |
| Std Output Shaft | 75 mm Square |
